The 3D CAD model can be leveraged to extract digital manufacturing information. This information can be generated for both hull and outfit design. |
|
| |
| |
Plate nesting which gives the CNC output to drive the marking and cutting machines. Apart from this the other manufacturing information generated from drawings is part lists, bending templates, plate jigs, pin jigs and stiffener endcut lists. |
|
| |
| |

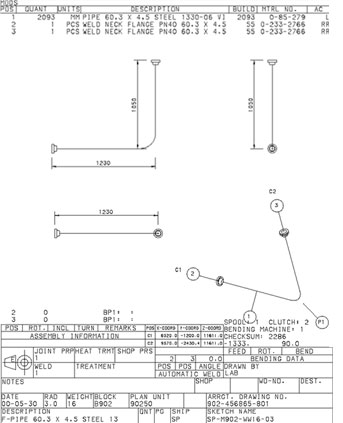

Detailed production pipe drawings are produced spool wise. This drawing contains all the manufacturing information like the cut quantities, assembly information and the three dimensional bending information. |
|
| |
| |
For cable, the manufacturing information consists of cable routs and actual cable lengths |
|
| |
| |
 |
|
| |
|
|
| |
